    Introduction​

    In this guide, you'll learn how to set up dbt so you can use it with BigQuery Dataframes (BigFrames):

    • Build scalable data transformation pipelines using dbt and Google Cloud, with SQL and Python.
    • Leverage BigFrames from dbt for scalable BigQuery SQL.

    In addition to the existing dataproc/pyspark based submission methods for executing python models, you can now use the BigFrames submission method to execute Python models with pandas-like and scikit-like APIs, without the need of any Spark setup or knowledge.

    BigQuery Dataframes is an open source python package that transpiles pandas and scikit-learn code to scalable BigQuery SQL. The dbt-bigquery adapter relies on the BigQuery Studio Notebook Executor Service to run the python client side code.

    Prerequisites​

    What you'll build​

    Here's what you'll build in two parts:

    • Google Cloud project setup
      • A one-time setup to configure the Google Cloud project you’ll be working with.
    • Build and Run the Python Model
      • Create, configure, and execute a Python model using BigQuery DataFrames and dbt.

    You will set up the environments, build scalable pipelines in dbt, and execute a python model.

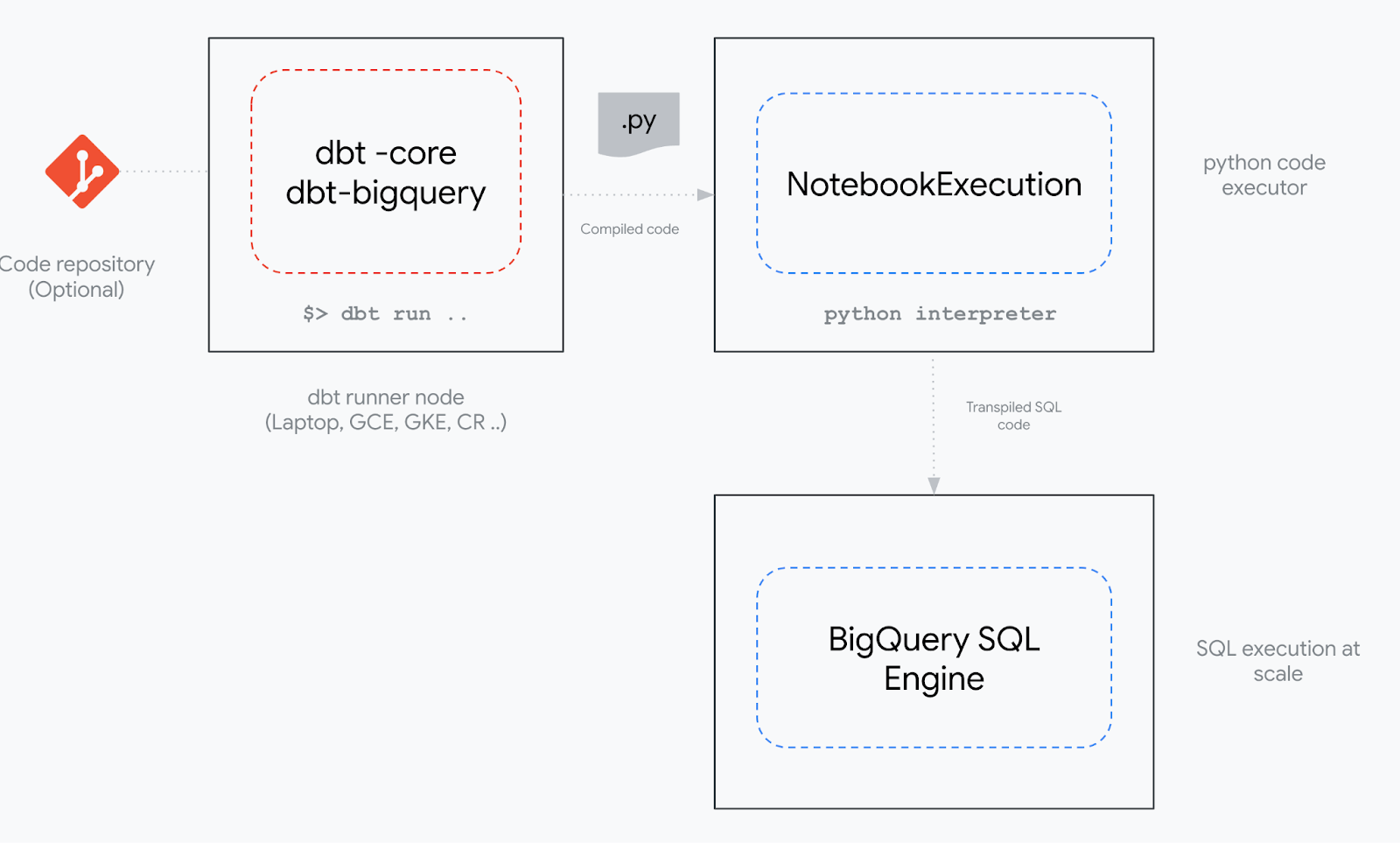

    Implementation of the BigFrames submission methodImplementation of the BigFrames submission method

    Figure 1 - Implementation of the BigFrames submission method for dbt python models

    Configure Google Cloud​

    The dbt BigFrames submission method supports both service account and OAuth credentials. You will use the service account in the following steps.

    1. Create a new Google Cloud Project

      a. Your new project will have the following list of APIs already enabled, including BigQuery, which is required.

      b. Enable the BigQuery API which also enables the following additional APIs automatically

    2. Create a service account and grant IAM permissions

      This service account will be used by dbt to read and write data on BigQuery and use BigQuery Studio Notebooks.

      Create the service account with IAM permissions:

      #Create Service Account
      gcloud iam service-accounts create dbt-bigframes-sa
      #Grant BigQuery User Role
      gcloud projects add-iam-policy-binding ${GOOGLE_CLOUD_PROJECT} --member=serviceAccount:dbt-bigframes-sa@${GOOGLE_CLOUD_PROJECT}.iam.gserviceaccount.com --role=roles/bigquery.user
      #Grant BigQuery Data Editor role. This can be restricted at dataset level
      gcloud projects add-iam-policy-binding ${GOOGLE_CLOUD_PROJECT} --member=serviceAccount:dbt-bigframes-sa@${GOOGLE_CLOUD_PROJECT}.iam.gserviceaccount.com --role=roles/bigquery.dataEditor
      #Grant Service Account user
      gcloud projects add-iam-policy-binding ${GOOGLE_CLOUD_PROJECT} --member=serviceAccount:dbt-bigframes-sa@${GOOGLE_CLOUD_PROJECT}.iam.gserviceaccount.com --role=roles/iam.serviceAccountUser
      #Grant Colab Entperprise User
      gcloud projects add-iam-policy-binding ${GOOGLE_CLOUD_PROJECT} --member=serviceAccount:dbt-bigframes-sa@${GOOGLE_CLOUD_PROJECT}.iam.gserviceaccount.com --role=roles/aiplatform.colabEnterpriseUser

    3. (Optional) Create a test BigQuery Dataset

      Create a new BigQuery Dataset if you don't already have one:

      #Create BQ dataset
      bq mk --location=${REGION} echo "${GOOGLE_CLOUD_PROJECT}" | tr '-' '_'_dataset

    4. Create a GCS bucket to stage the python code

      For temporary log and code storage, please create a GCS bucket and assign the required permissions:

      #Create GCS bucket
      gcloud storage buckets create gs://${GOOGLE_CLOUD_PROJECT}-bucket --location=${REGION}
      #Grant Storage Admin over the bucket to your SA

      gcloud storage buckets add-iam-policy-binding gs://${GOOGLE_CLOUD_PROJECT}-bucket --member=serviceAccount:dbt-bigframes-sa@${GOOGLE_CLOUD_PROJECT}.iam.gserviceaccount.com --role=roles/storage.admin

    5. Create a GCS bucket to hold the logs

      #Create GCS bucket
      gcloud storage buckets create gs://${GOOGLE_CLOUD_PROJECT}-bucket-logs --location=${REGION}
      #Grant Storage Admin over the bucket to your SA
      gcloud storage buckets add-iam-policy-binding gs://${GOOGLE_CLOUD_PROJECT}-bucket-logs --member=serviceAccount:dbt-bigframes-sa@${GOOGLE_CLOUD_PROJECT}.iam.gserviceaccount.com --role=roles/storage.admin

    Create, configure, and execute your Python models​

    1. In your dbt project, create a sql model in your models directory, ending in the .sql file extension. Name it my_sql_model.sql.

    2. In the file, copy this sql into it.

         select
         1 as foo,
         2 as bar

    3. Now create a new model file in the models directory, named my_first_python_model.py.

    4. In the my_first_python_model.py file, add this code:

      def model(dbt, session):
         dbt.config(submission_method="bigframes")
         bdf = dbt.ref("my_sql_model") #loading from prev step
         return bdf

    5. Configure the BigFrames submission method by using either:

      a. Project level configuration via dbt_project.yml

      models:
      my_dbt_project:
         submission_method: bigframes
         python_models:
            +materialized: view

      or

      b. The Python code via dbt.config in the my_first_python_model.py file

      def model(dbt, session):
         dbt.config(submission_method="bigframes")
         # rest of the python code...

    6. Run dbt run

    7. You can view the logs in dbt logs. You can optionally view the codes and logs (including previous executions) from the Colab Enterprise Executions tab and GCS bucket from the GCP console.

    8. Congrats! You just created your first two python models to run on BigFrames!
